  • December 10, 2025 at 12:37 pm #38019
    Mikey
    Participant

    So I  built this board circuit working fine but I want more gain/volume  from  the boost can I just  up the potentiometer value or do I have to change  a resistor value as well and would  that resistor  be in R2 or the R3 position

    December 10, 2025 at 12:39 pm #38020
    Mikey
    Participant

    I have any parts needed to up the potentiometer value  from A50k-1M all resistor value

    December 10, 2025 at 12:49 pm #38021
    Mikey
    Participant

    Also I would  like to note that I  am going  to be adding  the tone tweak but just jumping the in/out from  the breakout boards.

    December 10, 2025 at 12:54 pm #38022
    Mikey
    Participant

    Another  thought I just  had was to just  add an afterblaster to the circuit?  Thoughts?

    December 10, 2025 at 4:18 pm #38024
    Mikey
    Participant

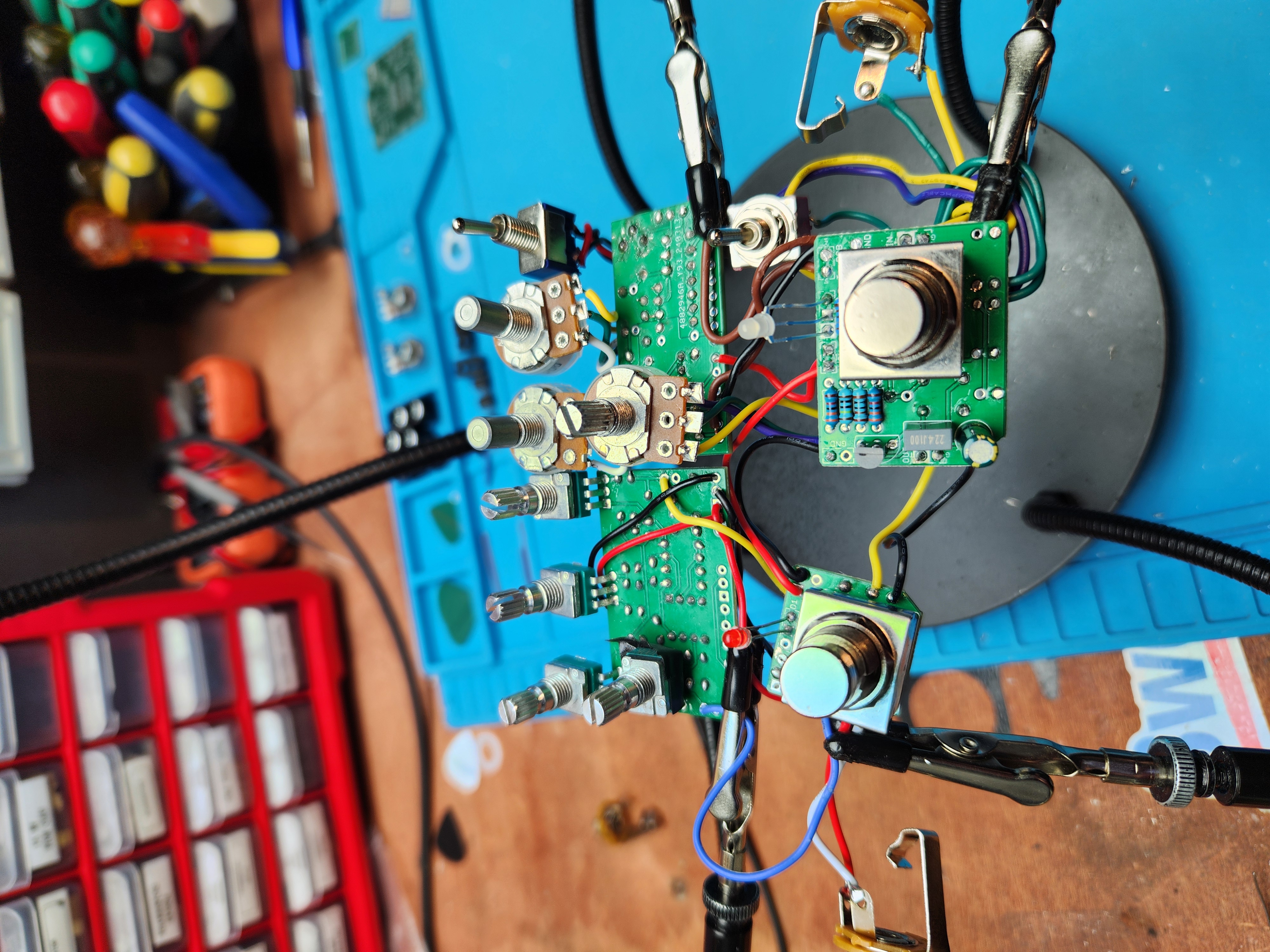

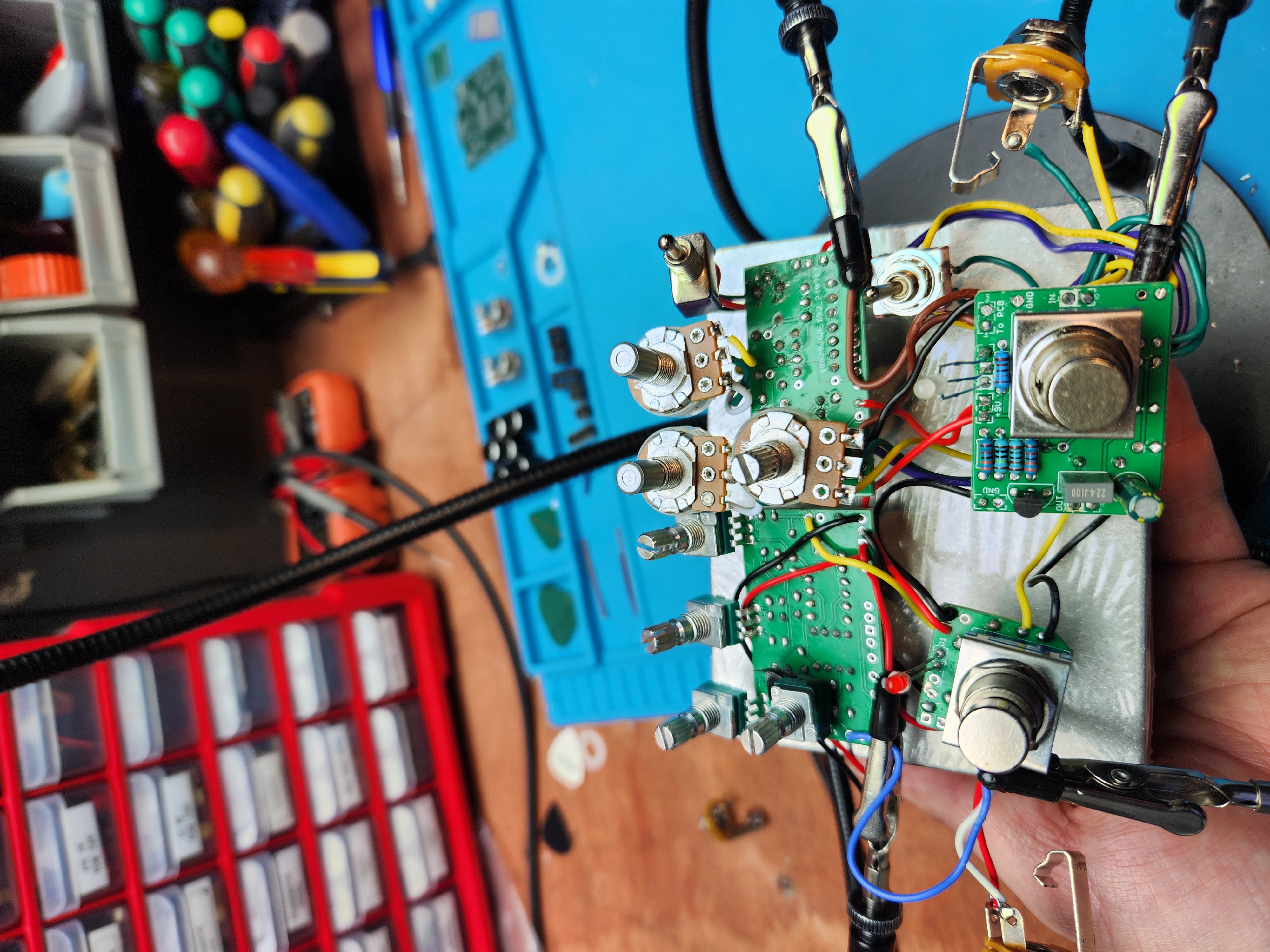

    Ok so I just slapped  an afterblaster on the circuit  it wasn’t  quite  what I  was after but it  adds something  else.  so basically I am running  the purp into the blaster then into the breakout  of the tone tweak all are switchable. so you can run the tone stack with a volume, or the purp by itself.then switch the blaster on.

    December 10, 2025 at 4:19 pm #38025
    Mikey
    Participant

    I would  still  like a bit more volume  from the purp itself  but I am satisfied for now.

    December 10, 2025 at 7:08 pm #38028
    Jeff24
    Participant

    Get some knobs that go up to 11; 10s just aren’t enough. 😉

    December 10, 2025 at 8:40 pm #38029
    Mikey
    Participant

    If only I were spinal tap it’d all work out.
