Help with Scematics for Old Kits

[kneerak]

Hi,

Over 10 years ago I bought some kits from Mammoth Electronics and life got in the way. My son is starting to play guitar and thought I might completed these pedal kits only i cannot find the schamtics online. Each kit says it came from GuitarPCB. On the PCBs they say

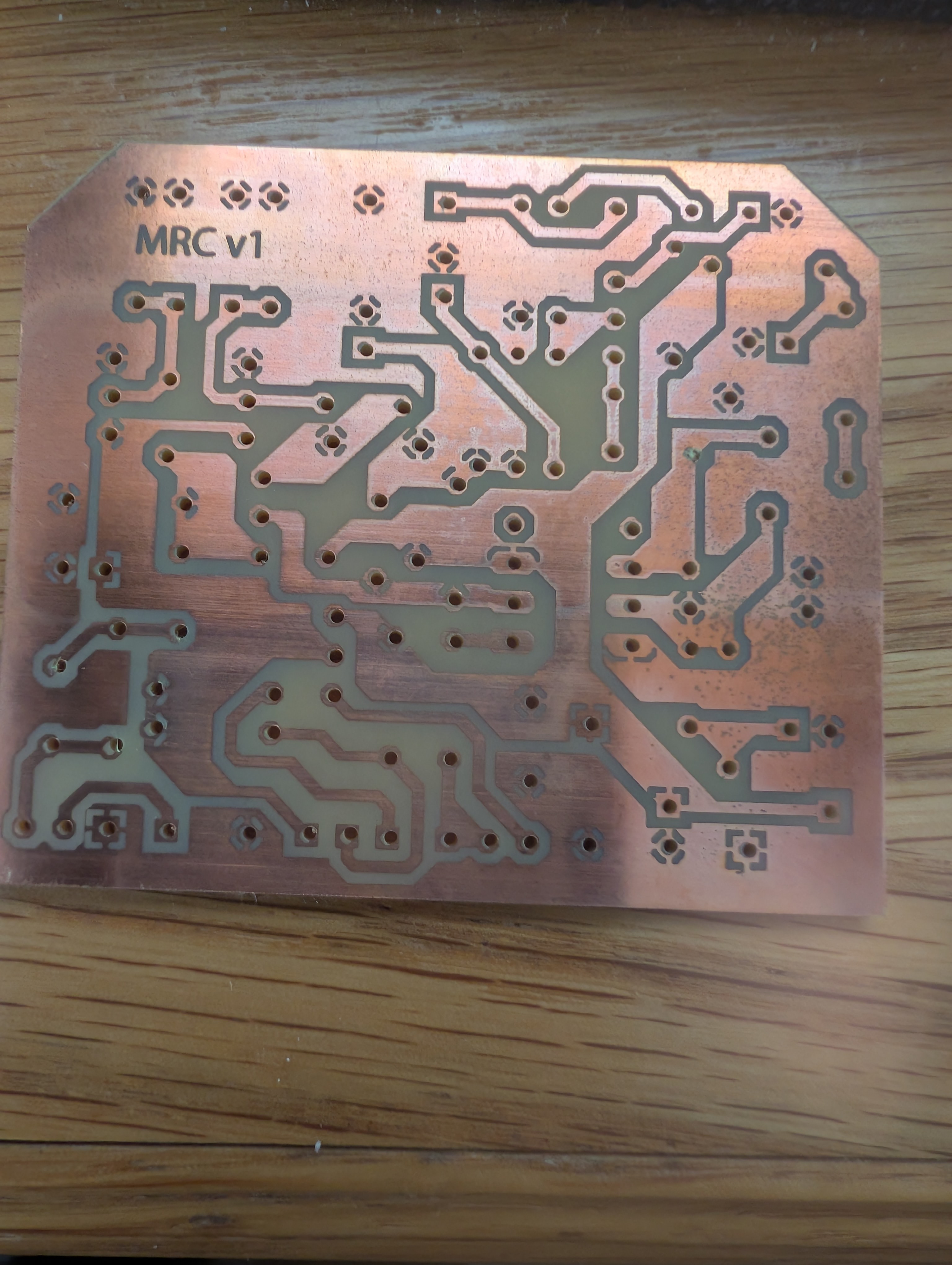

MRC V1

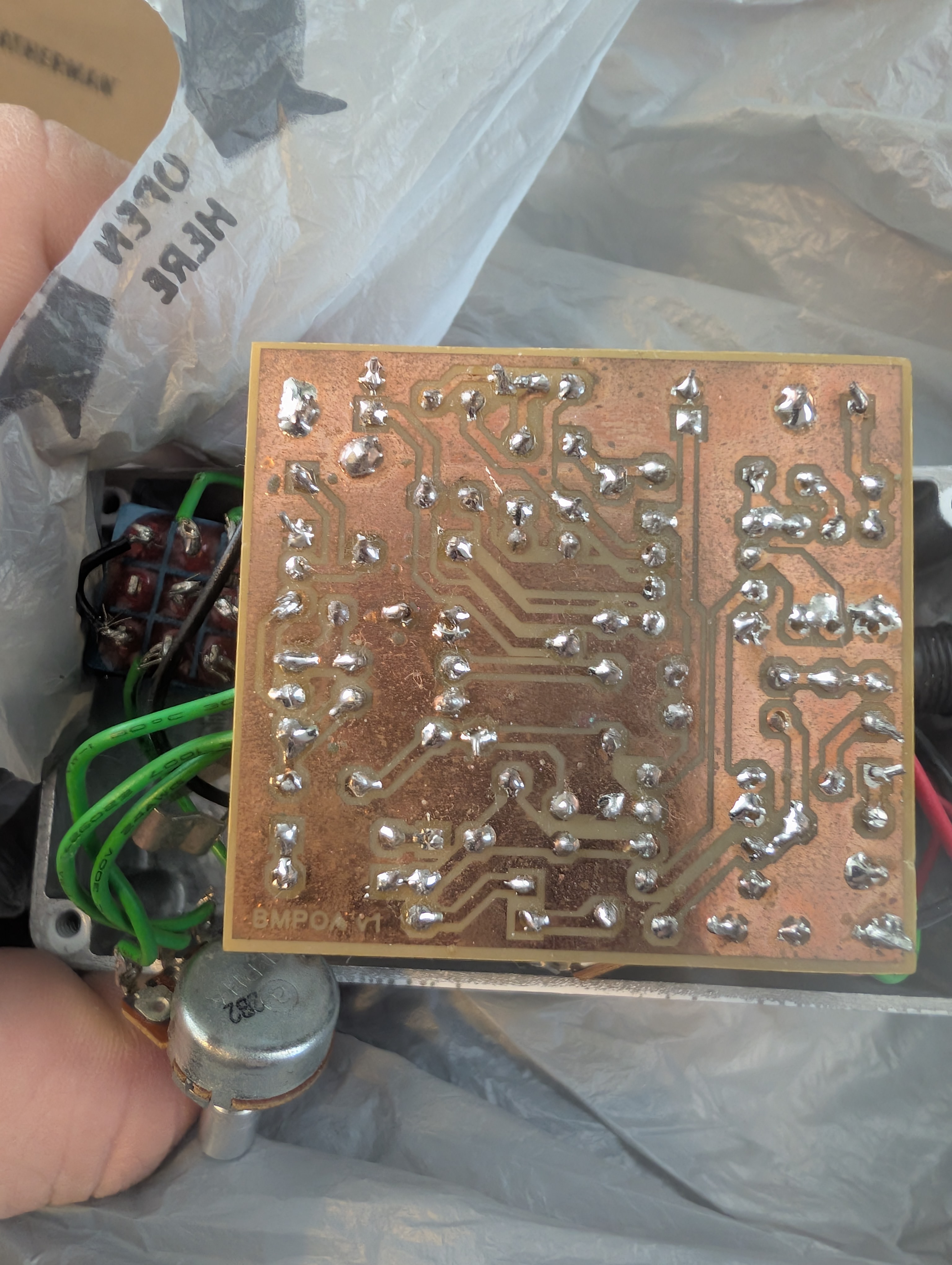

BMPOA V1 – Dons not work, Likely due to terrible soldering…

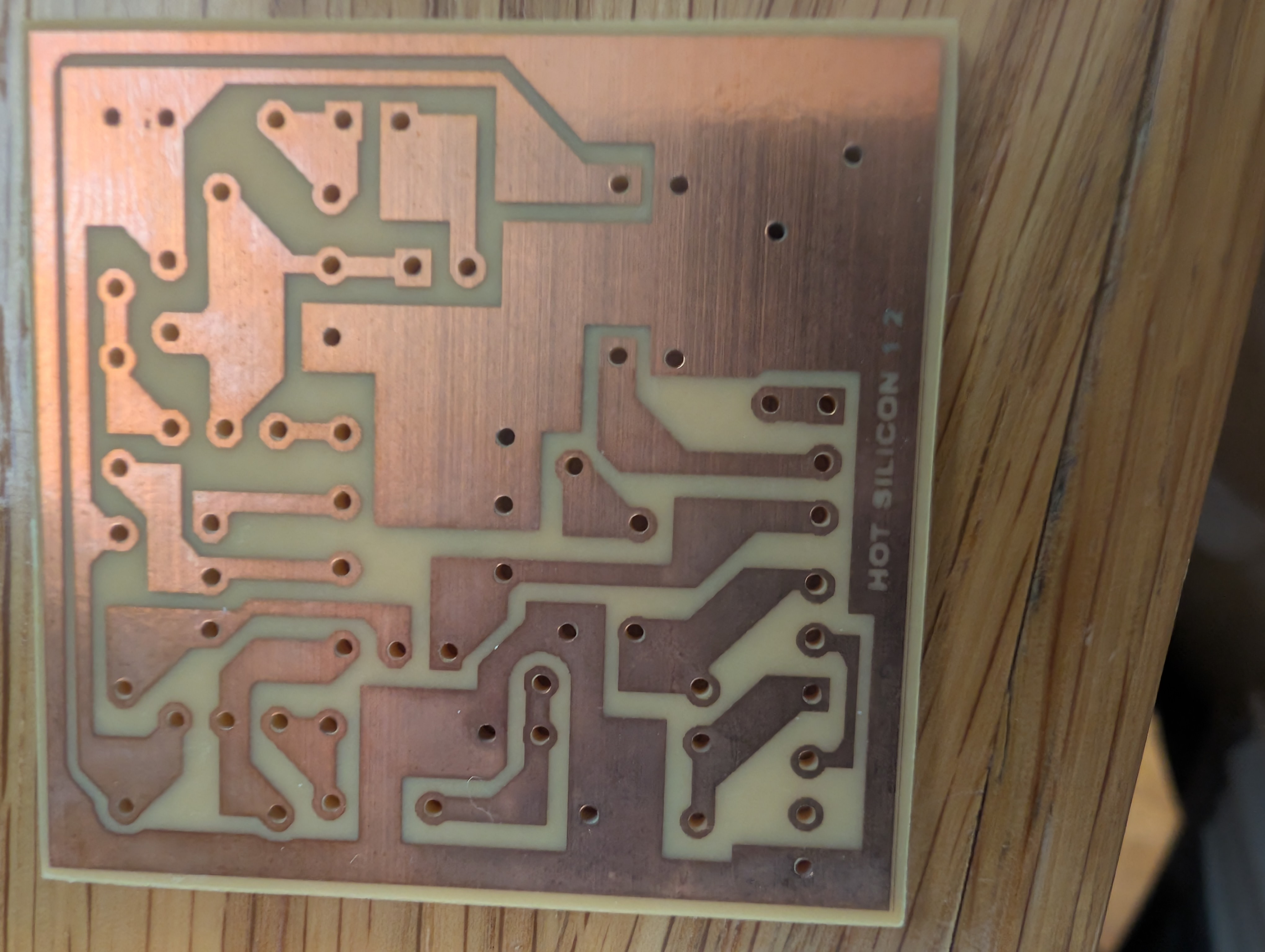

Hot Silicon 1.2

I can see newer versions of thesebut as I have the PCBs and the parts i wondered if anyone had access to these old schematics?.

[Billy]

I haven’t checked them all but most should be here

https://www.yumpu.com/en/guitarpcb.com
