  • #32415
    Tim Wood
    Participant

    I bought several of the germanium pnp transistors that were offered recently on the guitarpcb.com site. I intend to use one of them on the PURP Rangemaster board. How do I determine which of the leads are the emitter, base and collector? My TC1 is not capable of reading a germanium transistor. Is there a way to do it with a multi-meter? Thanks for any help offered.

    #32418
    Billy
    Moderator

    Your TC1 will show it as a BJT indicating the pins or you can Google the transistor type pinout although it may be in Russian it’s fairly obvious which pin is which

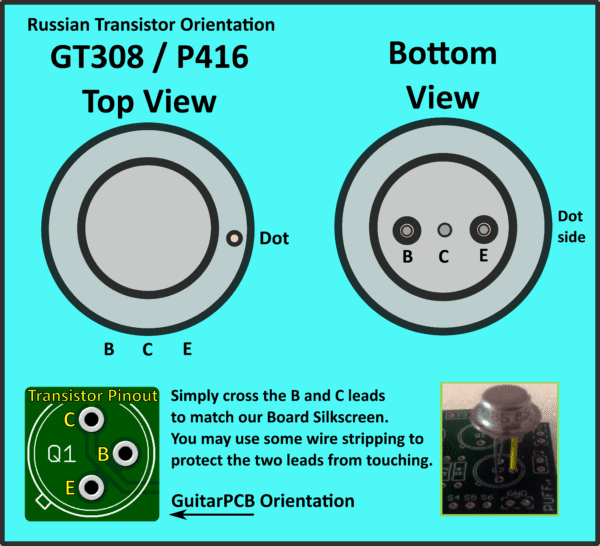

    If it’s the GT308 or P416 the pinout is here

    #32420
    Barry
    Keymaster

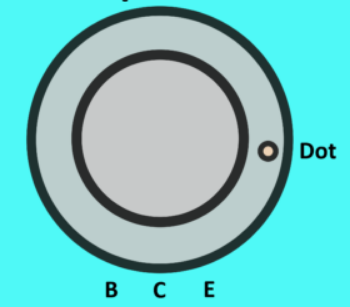

    Most Russian Germanium have a dot to indicate the emitter side. Then typically they reverse the Base and Collector from what we would expect like in the image below. Try looking up datasheets for confirmation. Remember Russian alphabet is different.

    If they are not Russian look up datasheet.

    #32421
    Big O
    Participant

    Agree with Barry.  You may have to internet search for the data sheet, which is what I used to do.  Fortunately I invested in a DCA-55 and use that to give me the pinouts and I have found it to be an invaluable tool for that and other things such as measuring forward voltages on diodes.

    #32466
    Tim Wood
    Participant

    Despite your excellent suggestions, I was unable to figure out which lead is which. I suspect my lack of knowledge is the problem. I really appreciate y’all taking the time to help me. I eventually will figure it out. I have a pretty good idea of which lead is the base, so I have a 50 percent chance of being right on the first try.

    #32468
    Barry
    Keymaster

    If they are Russian the dot indicates the Emitter and the lead for the Base on the opposite side.



    Otherwise the Tab indicates the emitter and they follow the silkscreen on the PCB.
