  • #32909
    joeychickenskin
    Participant

    Hi

    I’m debugging a Sabotage v2 2022 (I’m getting convincing distortion but it’s very warm (for a treble boosted circuit) and is pretty low in volume (not far above unity).

    Can I please check that V2.1 is V2 and that I DO need to reverse the orientation of C8 and C12?

    I still need to check the resistors but wanted to check that I was following the correct instructions.

    Thank you

    #32910
    Billy
    Moderator

    Yes that’s correct comparing the pcb and schematic the square + pads for both C8 and 12 connect to ground

    #32911
    joeychickenskin
    Participant

    That’s great. Thank you

    #32912
    Barry
    Keymaster

    To be 100% clear.

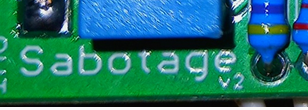

    You have a v.2 PCB in the photo.

    v.2 requires reversing the orientation of C8 and C12 compared to the silkscreen on the PCB.



    v2.1 does not require this.

    #32913
    joeychickenskin
    Participant

    Thank you for clarifying.
